Product Information

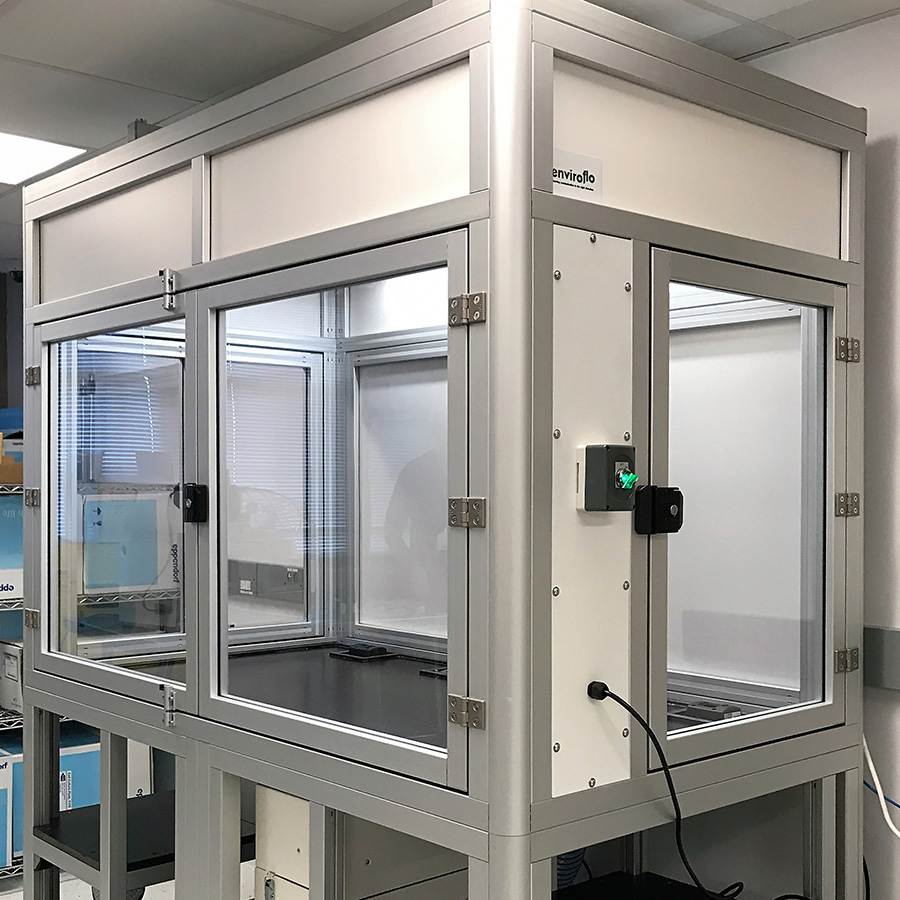

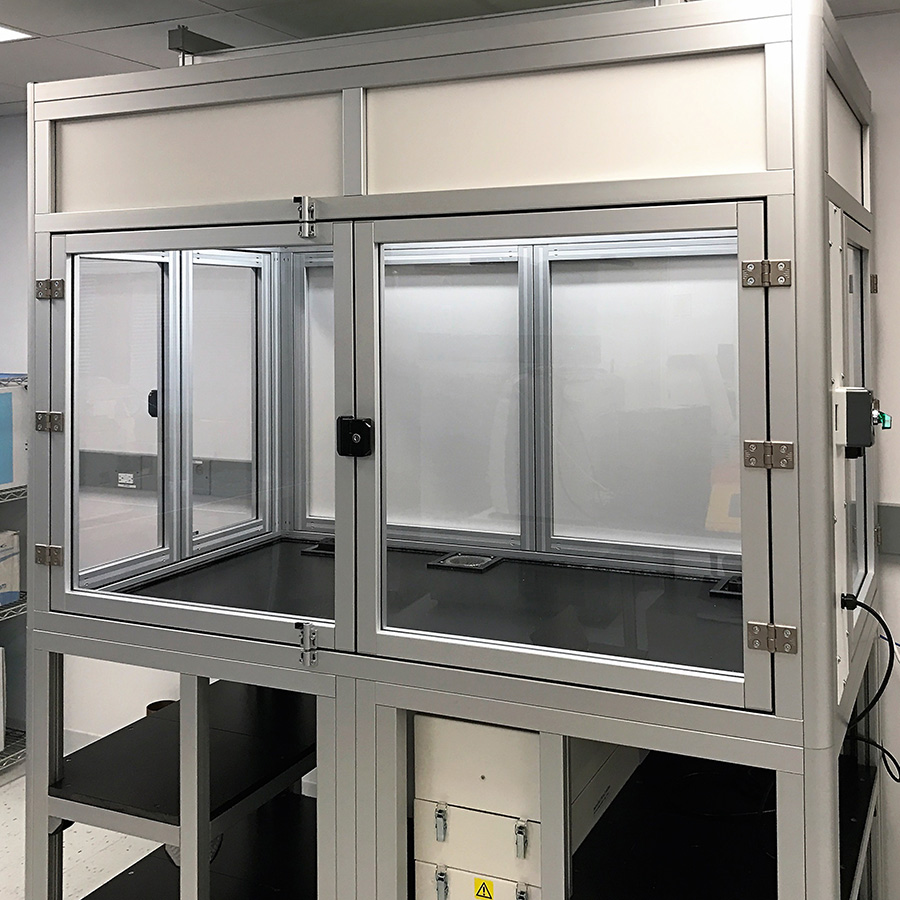

Negative and Positive Pressure Airflow Design for Operator,Product and Environment Protection

Construction

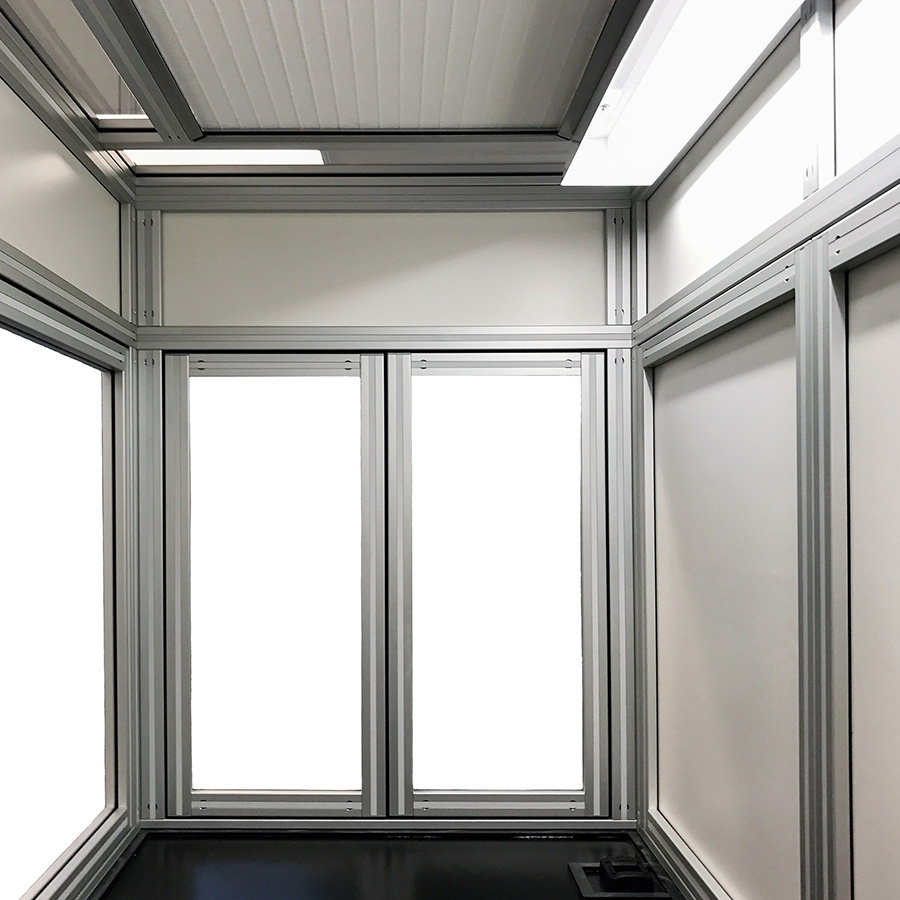

  • Manufactured with standard 45mm extrusion and 1/4" clear polycarbonate panels
  • Deck work surface and custom shelving using ¾" black TRESPA©

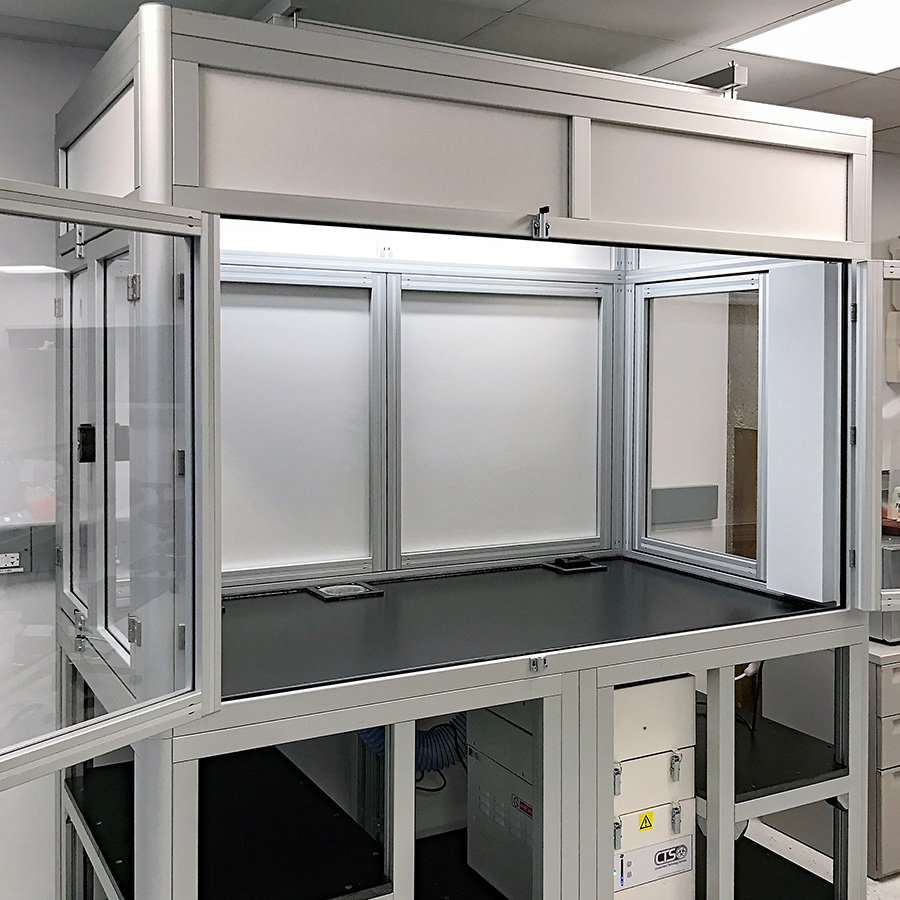

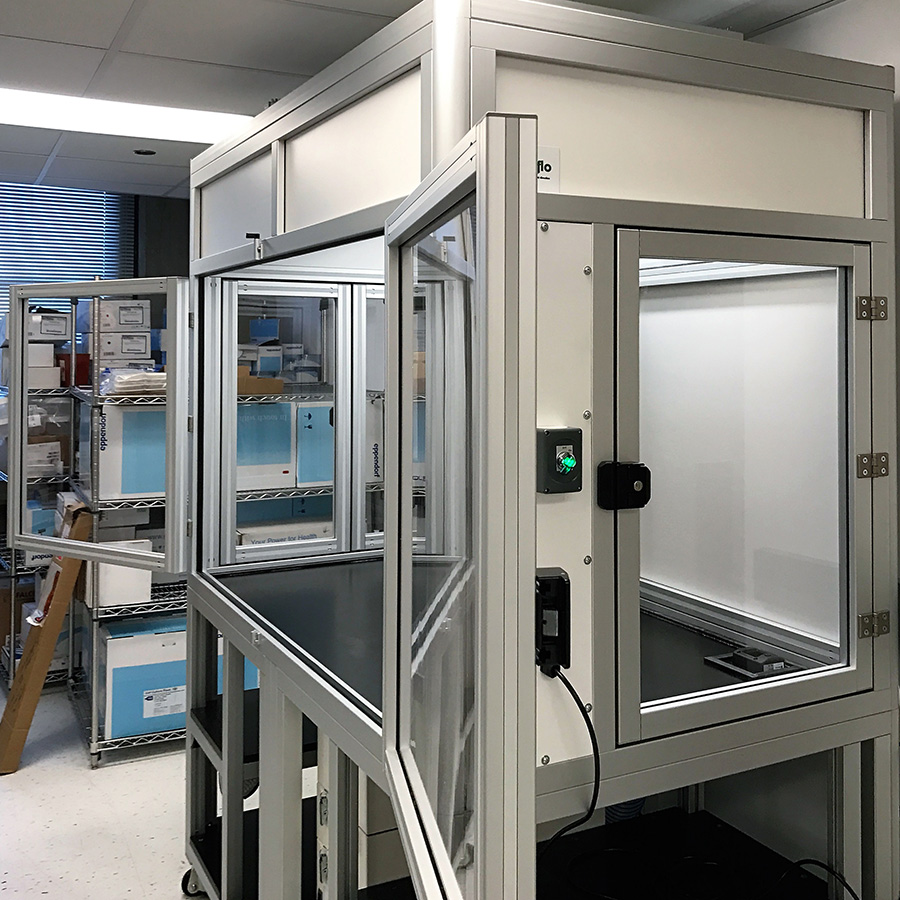

  • Designed with multiple hinged operator access doors
  • The rear is designed with two(2ea)lift-off access panels
  • Designed to accommodate one(1ea)positive pressure 2' X 4' HEPA Filter in the ceiling for vertical airflow over product,115v,50/60 HZ,variable speed control,@99.99%,0.3microns,30%ASHRAE pre-filter.CFM is nominal 632 on a 2 X 4,12 5/8" high.The running amperage requirement is 1.6A and the start-up requirement is 4.1A
  • Two(2ea)Acuity Lithonia LED strip light fixtures

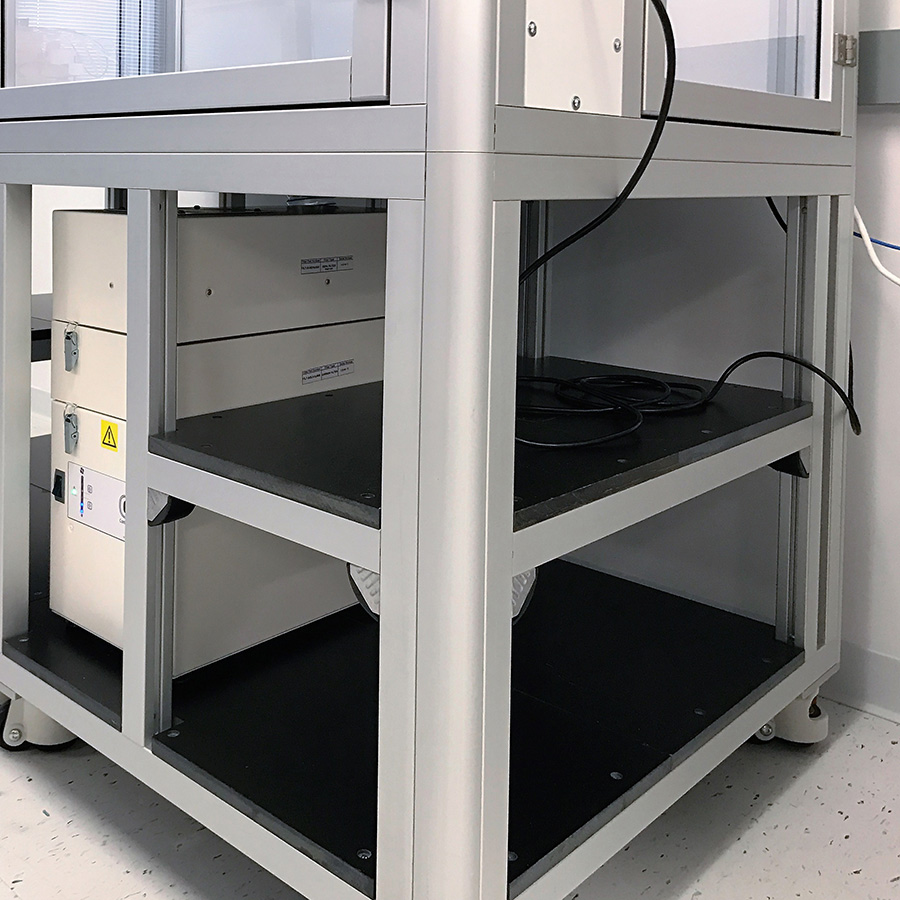

  • Includes CTS Safe-Change HEPA and carbon filtration canister for shelf mounting providing negative pressure within enclosure.HEPA filtered air is exhausted back into laboratory
  • Includes four(4ea)levelling casters
  • The control panel includes:
    • Mini-Helic for measuring delta pressure across HEPA filters
    • Variable control for the FFU fan speed
    • On/Off switch for LED lighting
    • Power input module
    • Roxtec EZ4 Entry
